PVDF Sheets
Our PVDF sheets are made from 100% virgin material or with optional filler additions, manufactured through extrusion or molding. These sheets are available in thicknesses from 3mm to 50mm, with maximum width up to 1000mm and length up to 3000mm.
PVDF Sheet Types

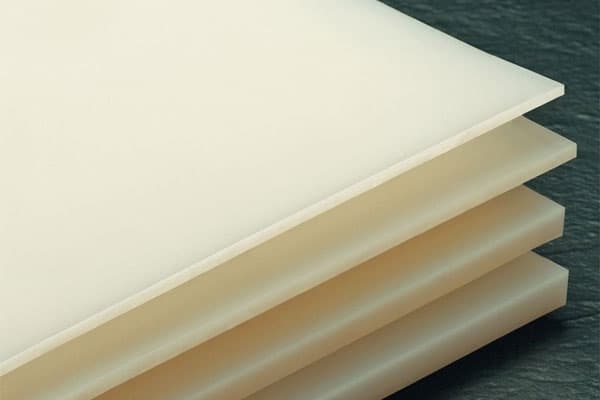

- Made from 100% pure PVDF resin.
- High dielectric strength.
- Low friction coefficient.

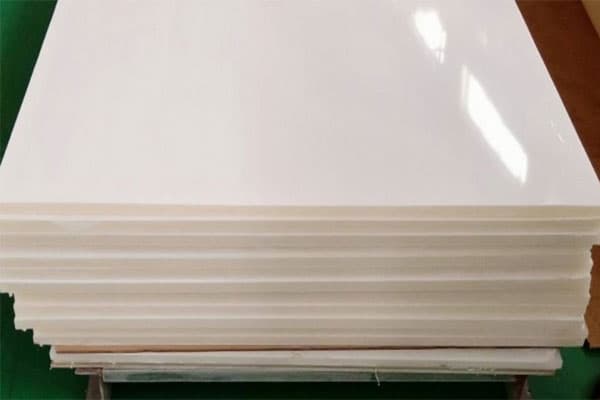

- PVDF resin reinforced with glass fibers.
- Better dimensional stability.
- Enhanced resistance to wear and abrasion.

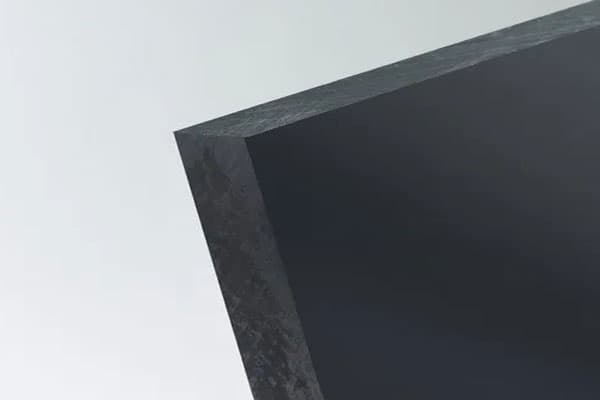

- PVDF resin combined with carbon black.
- High electrical conductivity.
- Improved thermal conductivity.
Our PVDF Sheet Performance
| Characteristic | Value |
|---|---|
| Density | 2.1 - 2.3g/cm3 |
| Tensile Strength | >=15MPa |
| Elongation at Break | >=150% |
| Hardness | D50 - D65 |
| Water Absorption Rate | <0.1% |
| Arc Resistance | >165 seconds without leakage |

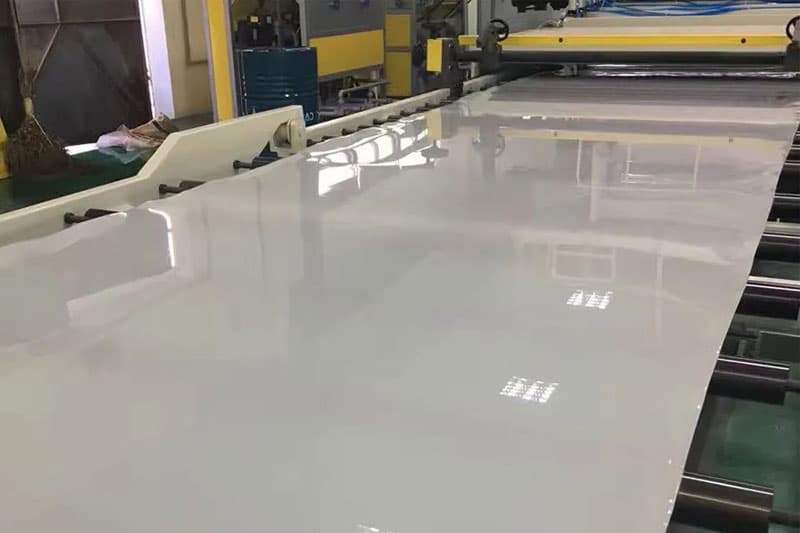

Extruded PVDF Sheet
Made by extruding molten PVDF resin through a die to form sheets of desired thickness. Extruded PVDF sheets have the following features:
- Continuous and uniform manufacturing.
- Smooth, glossy surface finish.
- Available in thinner thicknesses.
- Good mechanical strength, high chemical resistance, and high-temperature tolerance.
- More cost-effective for large quantities.
Extruded PVDF Sheet Parameters
| Thickness | Width*Length | Weight |
|---|---|---|
| 3mm | 1000*2000mm | 10.8kg |
| 3mm | 1500*3000mm | 24.3kg |
| 4mm | 1000*2000mm | 14.4kg |
| 4mm | 1500*3000mm | 32.4kg |
| 5mm | 1000*2000mm | 18kg |
| 5mm | 1500*3000mm | 40.5kg |
| 6mm | 1000*2000mm | 21.6kg |
| 6mm | 1500*3000mm | 48.6kg |
| 8mm | 1000*2000mm | 28.8kg |
| 8mm | 1500*3000mm | 64.8kg |
| 10mm | 1000*2000mm | 36kg |
| 10mm | 1500*3000mm | 81kg |
| 12mm | 1000*2000mm | 43.2kg |
| 12mm | 1500*3000mm | 97.2kg |
| 15mm | 1000*2000mm | 54kg |
| 15mm | 1500*3000mm | 121.5kg |

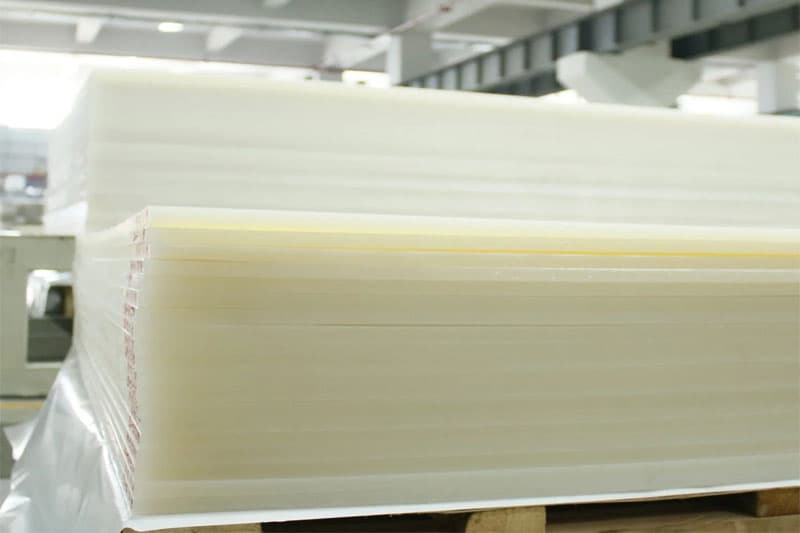

Molded PVDF Sheet
Made through a molding process where PVDF is heated and injected into molds, then cooled to form sheets. Molded PVDF sheets have the following features:
- High purity and exceptional chemical resistance.
- Typically available in thicker sheets than extruded variants, including very thick sheets.
- More flexibility for custom sizes and designs.
- Higher strength and better performance in high-stress applications.
- More expensive than extruded sheets.
Molded PVDF Sheet Parameters
| Thickness | Width*Length | Weight |
|---|---|---|
| 20mm | 1000*2000mm | 72kg |
| 25mm | 1000*2000mm | 90kg |
| 30mm | 1000*2000mm | 108kg |
| 35mm | 1000*2000mm | 126kg |
| 40mm | 1000*2000mm | 144kg |
| 45mm | 1000*2000mm | 162kg |
| 50mm | 1000*2000mm | 180kg |
Are your PVDF sheets made from virgin material or recycled material?
We offer PVDF sheets made from 100% virgin material, ensuring high quality, reliability, and optimal performance for industrial use.
What is the difference between extruded and molded PVDF sheets?
Extruded PVDF sheets are produced by forcing molten material through a die, resulting in consistent thickness. Molded PVDF sheets are created by heating and shaping material in a mold, offering better dimensional control for specific applications.
What's the sizes and thicknesses of your PVDF sheets?
We provide standard thicknesses from 3mm to 50mm, with a max width of 1000mm and length of 3000mm.
Are your PVDF sheets available in different colors?
Yes, our PVDF sheets are available in various colors upon request to meet specific design or application requirements.
Can your PVDF sheets be customized to fit specific dimensions?
Yes, we can customize PVDF sheets to specific dimensions, including cutting them to your required thickness, width, and length.
