PVDF Pipe & Fittings
With an extensive range of outer diameters from 20mm to 225mm and wall thicknesses from 2.0mm to 10.8mm, our PVDF pipes are designed for fluid handling and chemical transport applications. In addition to versatile PVDF pipe options, we provide a wide selection of fittings to support seamless and efficient installation.
Oure PVDF Piping Types

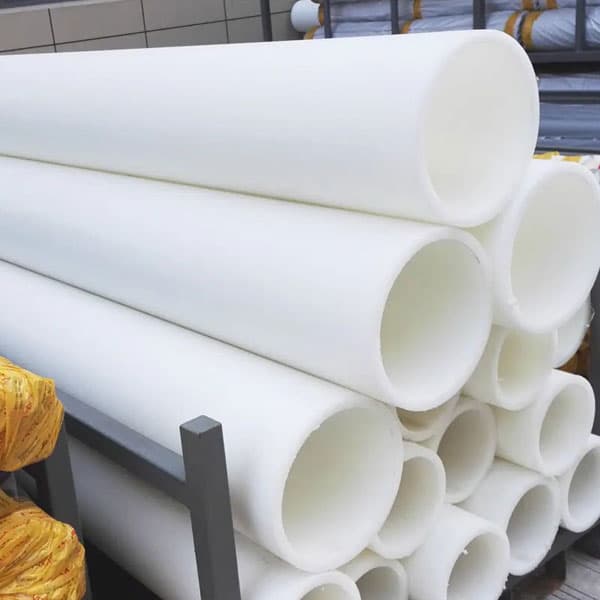

- Made from pure Polyvinylidene Fluoride (PVDF), offering high chemical resistance and durability.
- High strength and impact resistance, maintaining structural integrity under pressure.
- Lightweight and simple to install using fusion welding, mechanical joints, or threaded fittings.

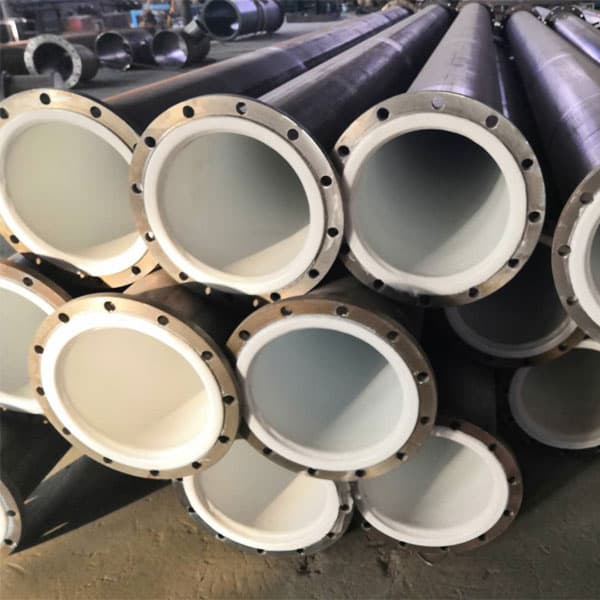

- Constructed with an outer layer of metal (such as carbon steel or stainless steel) and an inner PVDF lining.
- Higher mechanical strength than pure PVDF pipes due to the metal casing, making it suitable for high-pressure applications.
- Can be installed using pipe fittings and flanges, making it compatible with existing piping systems.
Oure PVDF Pipe Parameters
| DN Size | OD | Wall Thickness | Pressure |
|---|---|---|---|
| 15 | 20mm | 2.0mm | 2.0MPa |
| 20 | 25mm | 2.0mm | 2.0MPa |
| 25 | 32mm | 2.4mm | 2.0MPa |
| 32 | 40mm | 2.4mm | 2.0MPa |
| 40 | 50mm | 3.0mm | 2.0MPa |
| 50 | 65mm | 3.0mm | 1.6MPa |
| 65 | 80mm | 3.6mm | 1.6MPa |
| 80 | 90mm | 4.3mm | 1.6MPa |
| 100 | 110mm | 3.4mm | 1.0MPa |
| 100 | 110mm | 5.3mm | 1.6MPa |
| 125 | 140mm | 4.3mm | 1.0MPa |
| 125 | 140mm | 6.7mm | 1.6MPa |
| 150 | 160mm | 4.9mm | 1.0MPa |
| 150 | 160mm | 4.7mm | 1.6MPa |
| 200 | 225mm | 6.9mm | 1.0MPa |
| 200 | 225mm | 10.8mm | 1.6MPa |
Color Options

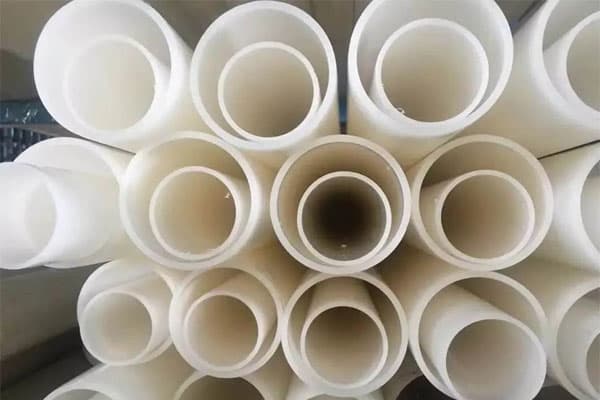

- Translucent, high-purity PVDF pipe with excellent chemical resistance, thermal stability, and UV resistance.
- Ideal for semiconductor, pharmaceutical, and chemical processing industries.
- UV-resistant PVDF pipe with added carbon black for enhanced weatherability and degradation protection.
- Commonly used in outdoor and high-exposure environments.

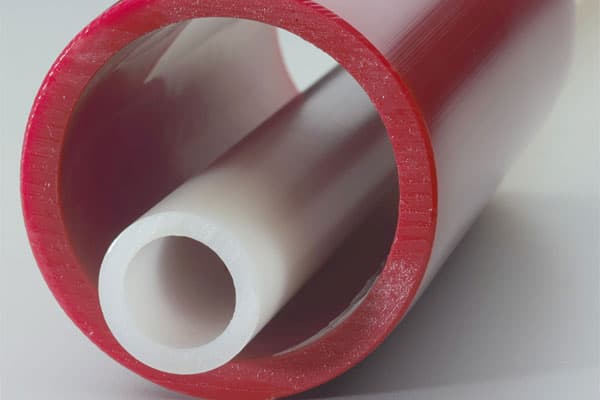

- Chemically resistant PVDF pipe with distinct red color for easier identification.
- Suitable for specialized applications such as fire suppression systems and aggressive chemical processing environments.

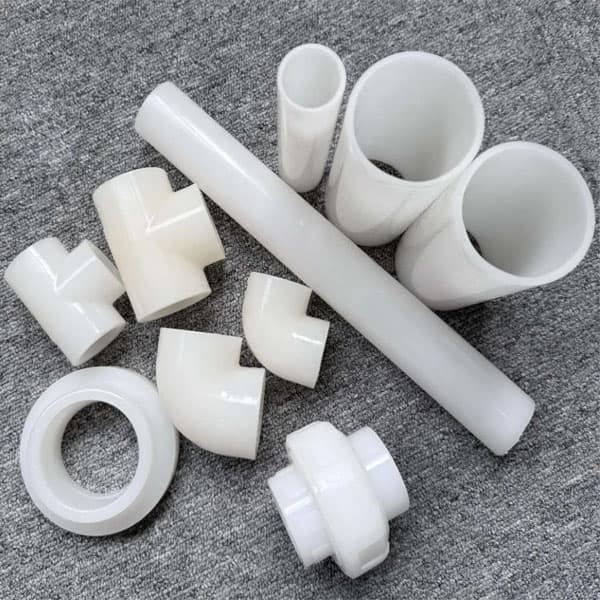

Fitting Options
To ensure secure and leak-free connections, PVDF piping systems use various fitting options for different applications and installation requirements. Our fitting options include:
- Socket Fusion Fittings - Provide a strong, permanent bond by fusing the pipe and fitting together using heat.
- Butt Fusion Fittings - Used for larger diameter pipes, creating seamless joints with high strength and reliability.
- Electrofusion Fittings - Feature embedded heating elements for quick and precise fusion welding.
- Threaded Fittings - Offer easy, removable connections for non-permanent installations.
- Flanged Fittings - Ideal for high-pressure systems, allowing easy assembly and disassembly.
- Compression Fittings - Provide mechanical connections without welding, suitable for quick installations and repairs.
Each fitting type offers distinct advantages based on system requirements, ensuring safe and efficient fluid transport in demanding environments.
What types of PVDF pipes do you offer?
We offer standard and lined PVDF pipes, catering to different industrial needs.
What is the outer diameter range of your PVDF pipes?
Our PVDF pipes come in an outer diameter range of 20mm to 225mm.
What is the wall thickness of your PVDF pipes?
Our PVDF pipes are available with wall thicknesses ranging from 2.0mm to 10.8mm.
What pressure ratings are available for your PVDF pipes?
We offer PVDF pipes with pressure ratings of 1.0MPa, 1.6MPa, and 2.0MPa to suit various operational needs.
Can I customize the color of PVDF pipes?
Yes, we offer PVDF pipes in natural, black, red, and custom colors upon request.
What types of fittings are available for your PVDF pipes?
We offer various fitting options to complement our PVDF pipes, ensuring compatibility with your installation requirements.
Can your PVDF pipes be welded?
Yes, PVDF pipes can be welded using standard thermoplastic welding techniques, such as butt welding or socket welding.
Can I order PVDF pipes in custom sizes or specifications?
Yes, we can provide custom sizes and specifications based on your specific needs. Contact us for a custom quote.
