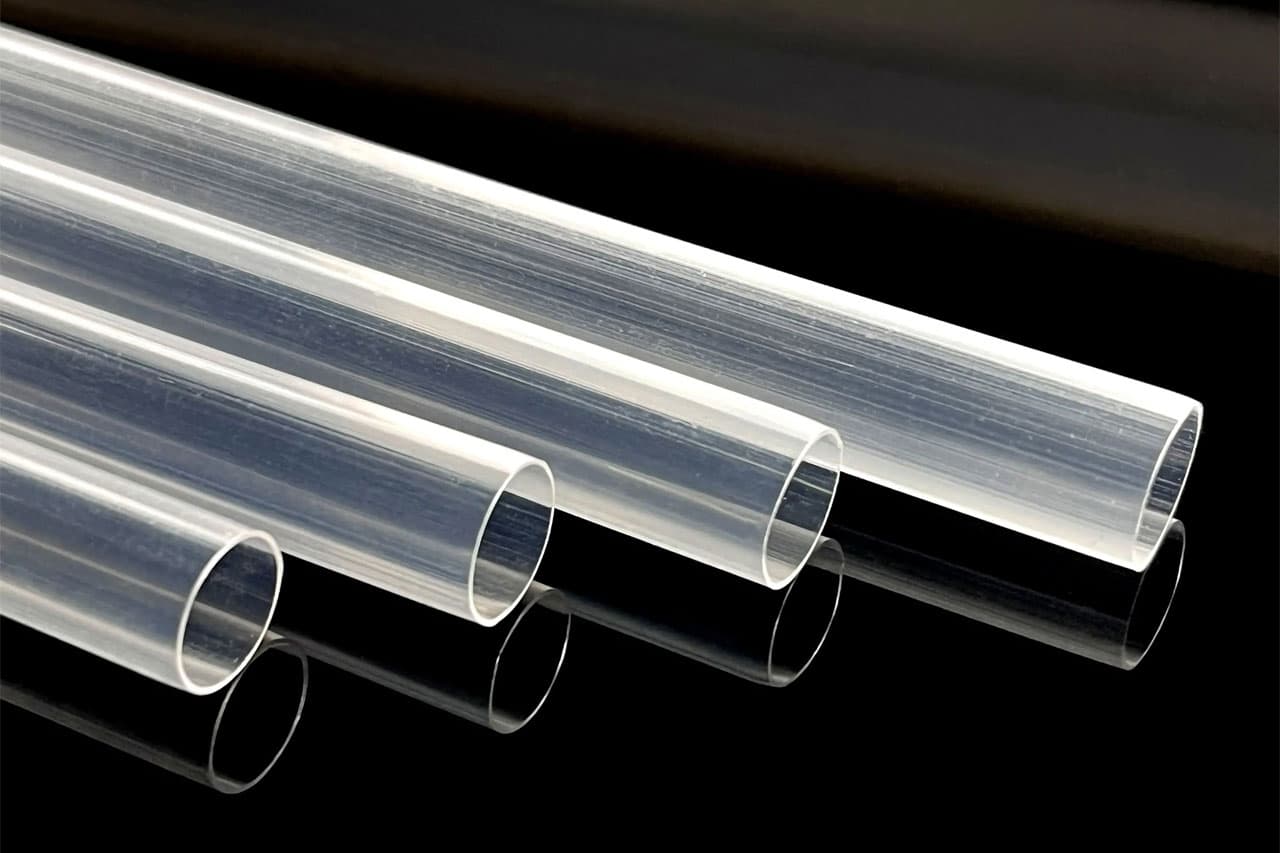

PVDF Heat Shrink Tubing
Our PVDF tubing is engineered for high performance and durability, with an outer diameter (OD) range of 1.2mm to 10.5mm, an inner diameter (ID) of 0.6mm to 4.8mm, and wall thickness from 0.25mm to 0.3mm. We provide 2:1 and 3:1 shrink ratios for secure fit and insulation in critical applications.
Our PVDF Shrink Tubing Performance Characteristics
| Characteristic | Standard | Value |
|---|---|---|
| Tensile Strength | ASTM D2671 | 34.5MPa |
| Elongation at Break | ASTM D2671 | 1.5 |
| Elongation at Break after Aging | 250 deg C / 168 Hours | 1 |
| Volume Resistance | IEC93 | 10^13 ohm.cm |

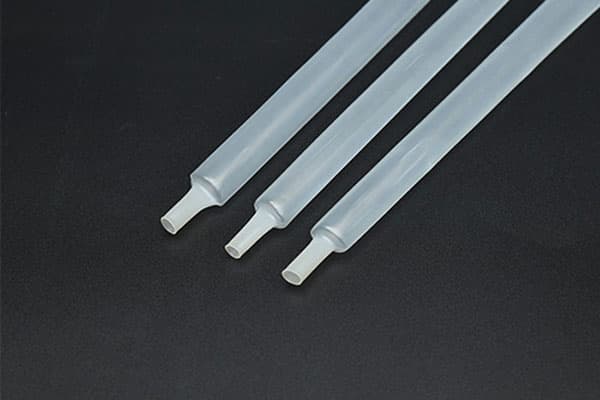

2:1 PVDF Heat Shrink Tubing
The 2:1 shrink ratio allows effective insulation and protection of wires, connectors, and delicate components while maintaining flexibility and durability.
2:1 PVDF Heat Shrink Tubing Parameters
| OD | ID | Wall Thickness | Length Per Roll |
|---|---|---|---|
| 1.2mm | 0.6mm | 0.25+-0.05mm | 200m |
| 1.6mm | 0.8mm | 0.25+-0.05mm | 200m |
| 2.4mm | 1.2mm | 0.25+-0.05mm | 200m |
| 3.2mm | 1.6mm | 0.25+-0.05mm | 100m |
| 4.8mm | 2.4mm | 0.25+-0.05mm | 100m |
| 6.4mm | 3.2mm | 0.25+-0.05mm | 100m |
| 7.9mm | 4.0mm | 0.25+-0.05mm | 50m |
| 9.5mm | 4.8mm | 0.30+-0.05mm | 50m |

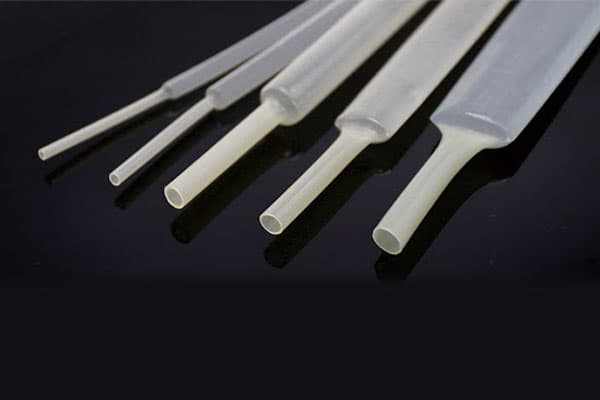

3:1 PVDF Heat Shrink Tubing
The increased 3:1 shrink capability is ideal for applications requiring coverage over irregularly shaped or varying-diameter components.
3:1 PVDF Heat Shrink Tubing Parameters
| OD | ID | Wall Thickness | Length Per Roll |
|---|---|---|---|
| 3.2mm | 1.0mm | 0.25+-0.05mm | 100m |
| 4.8mm | 1.6mm | 0.25+-0.05mm | 100m |
| 6.4mm | 2.2mm | 0.25+-0.05mm | 100m |
| 7.9mm | 2.7mm | 0.25+-0.05mm | 100m |
| 10.5mm | 3.5mm | 0.25+-0.05mm | 100m |
What are the dimensions of your PVDF heat shrink tubing?
Our PVDF heat shrink tubing comes with an OD ranging from 1.2mm to 10.5mm, an ID ranging from 0.6mm to 4.8mm, and wall thickness between 0.25mm and 0.3mm.
What lengths are available for your PVDF heat shrink tubing?
We offer PVDF heat shrink tubing in roll lengths of 50m, 100m, and 200m to accommodate different project needs.
What shrink ratios do you offer for PVDF tubing?
Our PVDF heat shrink tubing is available in 2:1 and 3:1 shrink ratios, meaning it can shrink to half or one-third of its original diameter when heated.
Can you provide custom sizes of PVDF heat shrink tubing?
Yes, we can manufacture PVDF tubing in custom OD, ID, and wall thickness specifications based on customer requirements.
Can you manufacture PVDF heat shrink tubing with custom colors?
Yes, we can produce colored PVDF tubing based on your specifications.
