PTFE Film
We are a leading manufacturer of high-quality PTFE film, offering a range of thicknesses from 0.01mm to 6.0mm. Our PTFE films are produced using advanced skiving processes, ensuring precision and consistency in every roll.

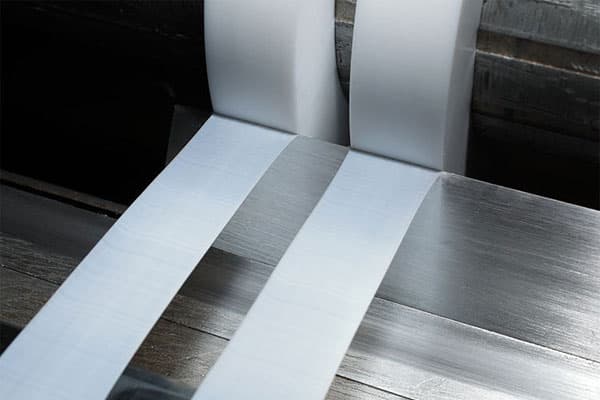

PTFE Film Skiving Manufacturing
Skiving is a precision machining process used to produce thin PTFE films with exceptional uniformity and consistency.
- Raw Material Preparation - A solid PTFE block or billet is prepared through compression molding and sintering.
- Rotary Cutting - The PTFE billet is mounted on a lathe or skiving machine.
- Precision Skiving - A sharp blade shaves thin layers of PTFE from the rotating billet, producing a continuous film.
- Thickness Control - The skiving process allows precise control over film thickness, ranging from ultra-thin to thicker sheets.
- Winding & Finishing - The skived PTFE film is collected in rolls and may undergo additional treatments like surface etching or adhesive coating.
PTFE Film Thickness

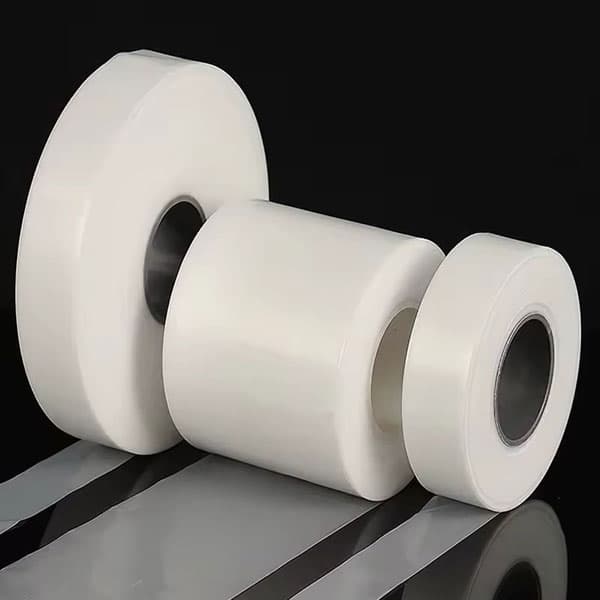

- 0.01mm - 0.1mm thickness.
- Extremely lightweight and flexible.
- Excellent electrical insulation properties.
- Ideal for precision applications like electronics and membranes.

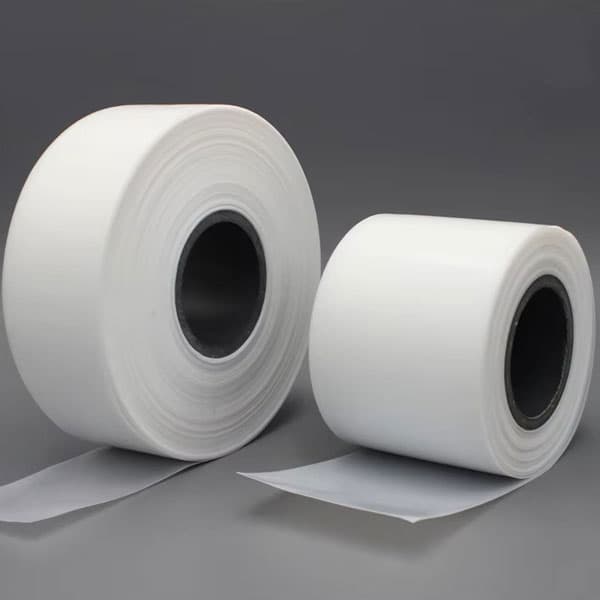

- 0.1mm - 1.0mm thickness.
- Balances flexibility and durability.
- High chemical and temperature resistance.
- Commonly used for gaskets, seals, and lining applications.

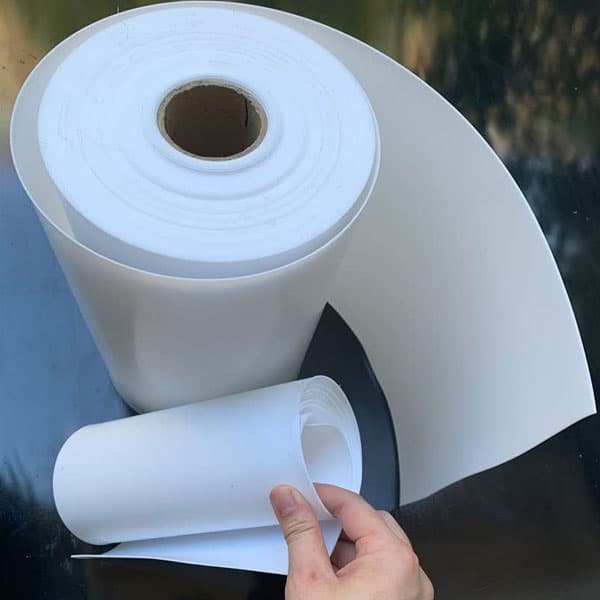

- 1.0mm - 6.0mm thickness.
- Rigid and robust structure.
- Superior wear resistance and strength.
- Suitable for heavy-duty industrial and engineering applications.
Our PTFE Film Properties
| Characteristic | Standard | Value |
|---|---|---|
| Density | GB/T 1033.1-2008 | 2.13 - 2.29g/cm3 |
| Tensile Strength | GB/T 1040.3-2006 | >=30MPa |
| Elongation at Break | GB/T 1040.3-2006 | >=200% |
| Electrical Strength | GB/T 1408.1-2006 | >=100kv/mm |
| Dielectric Constant | 10G | 2-2.1 |
| Loss Tangent | 10G | <0.001 |
What thickness options are available for your PTFE film?
Our PTFE film ranges in thickness from 0.01mm to 6.0mm.
What is the maximum width of your PTFE film?
Our PTFE film can be manufactured up to a maximum width of 1275mm.
What is the skiving process used in the production of PTFE film?
Skiving is a precision cutting process that creates thin, uniform layers of PTFE film, ensuring consistency in thickness and surface quality.
Can I get PTFE film in custom lengths?
Yes, we offer a custom cut-length service to meet your specific needs.
Do you offer PTFE films in rolls or sheets?
We provide PTFE film in both rolls and sheets, depending on your preferences and application.
Is your PTFE film certified?
Yes, our PTFE film meets international quality standards, and we can provide certification upon request.
How do I request a quote for PTFE film?
You can request a quote by providing the details of your required PTFE film (size, thickness, quantity) to our sales team via email or through our website's inquiry form.
